Rainwater harvesting system flow diagrams

 Our engineering team has put together a few flow diagrams that customers can use to design their own rainwater harvesting systems.

Below are a few of there flow-diagrams that can be used to design domestic and commercial rainwater harvesting systems.

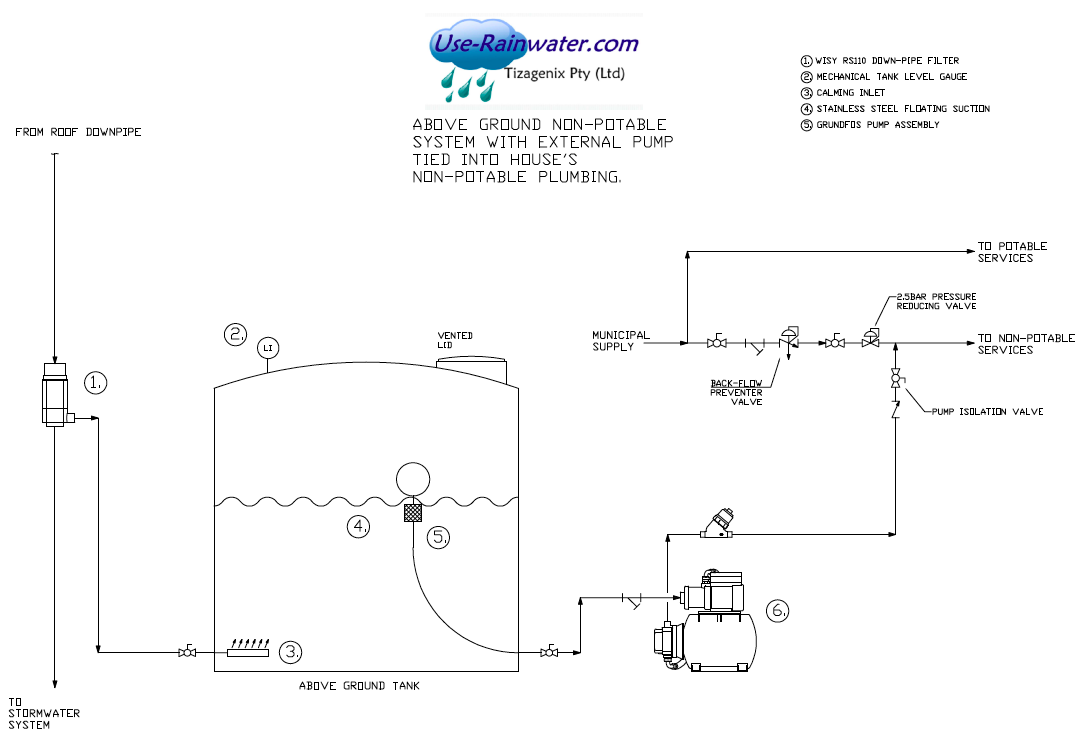

Rainwater Harvesting flow-diagram for above-ground non potable system to flush toilets

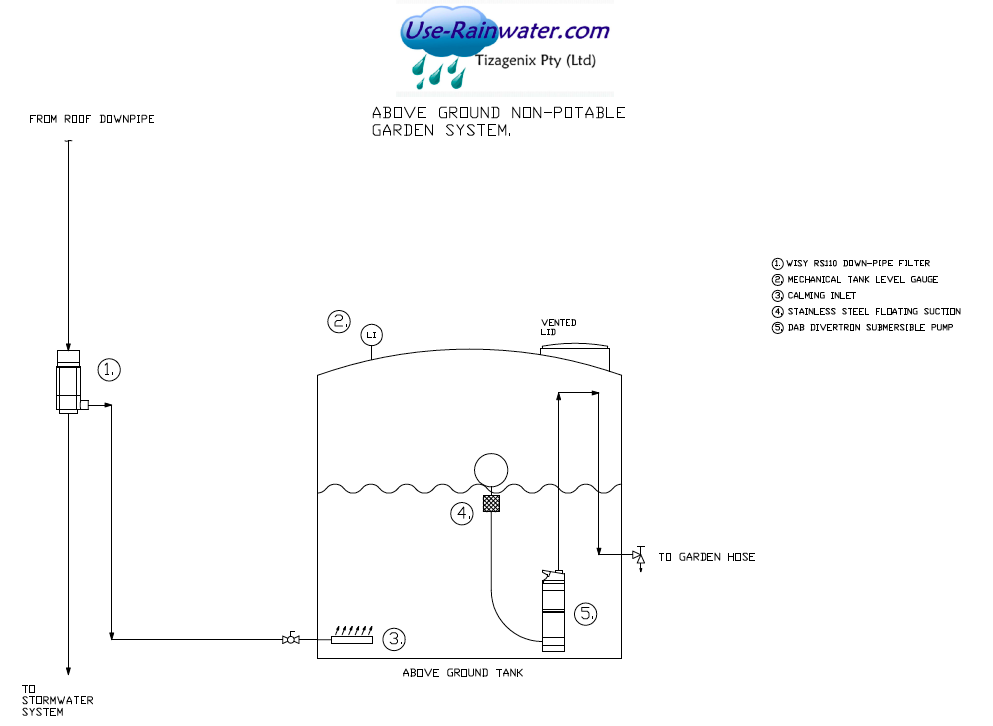

 Rainwater harvesting flow-diagram basic garden system

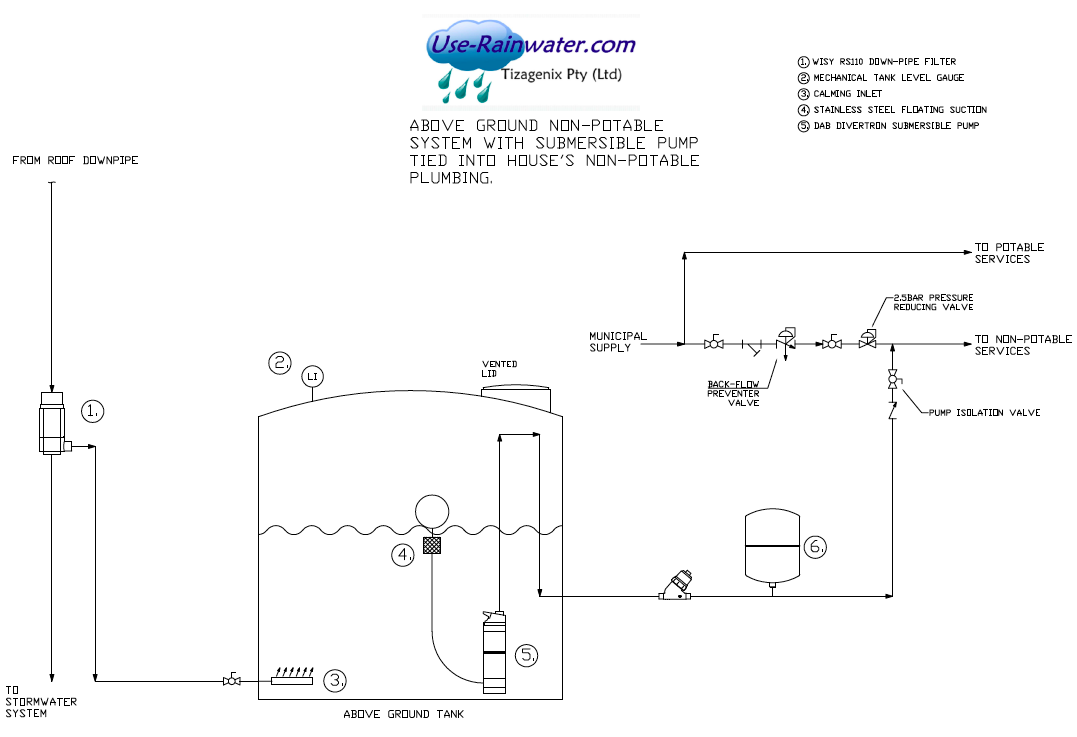

Rainwater harvesting system flow-diagram with a submersible pump

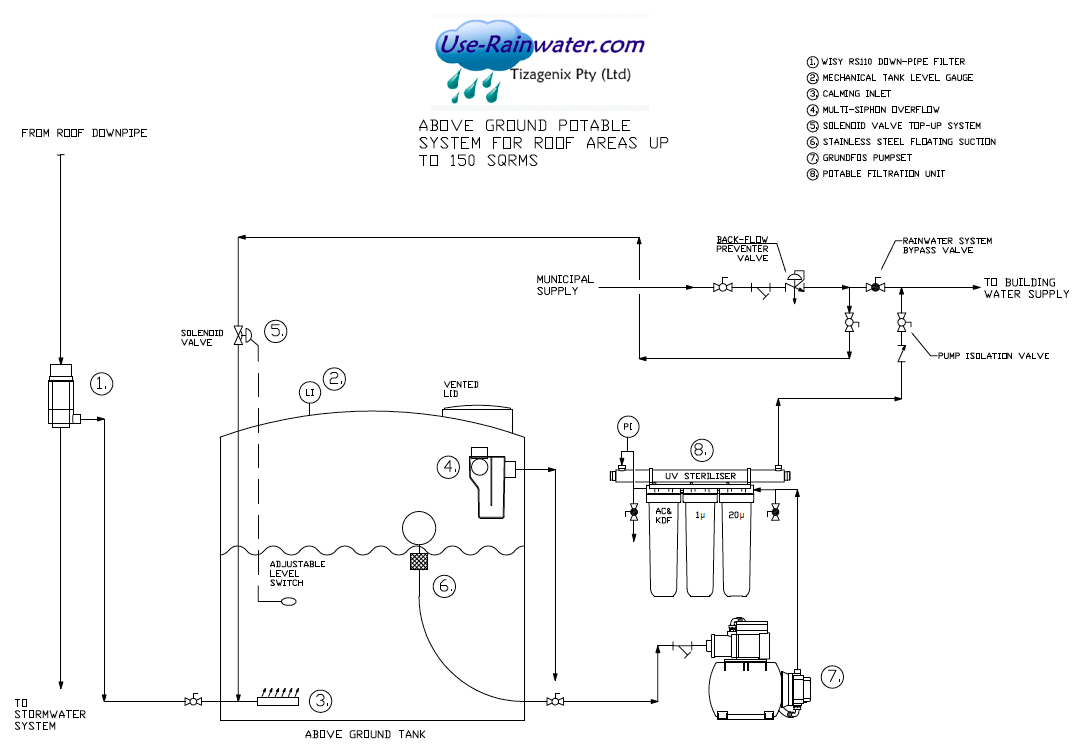

Rainwater harvesting system flow-diagram for an above ground storage tank for a 150sqm roof

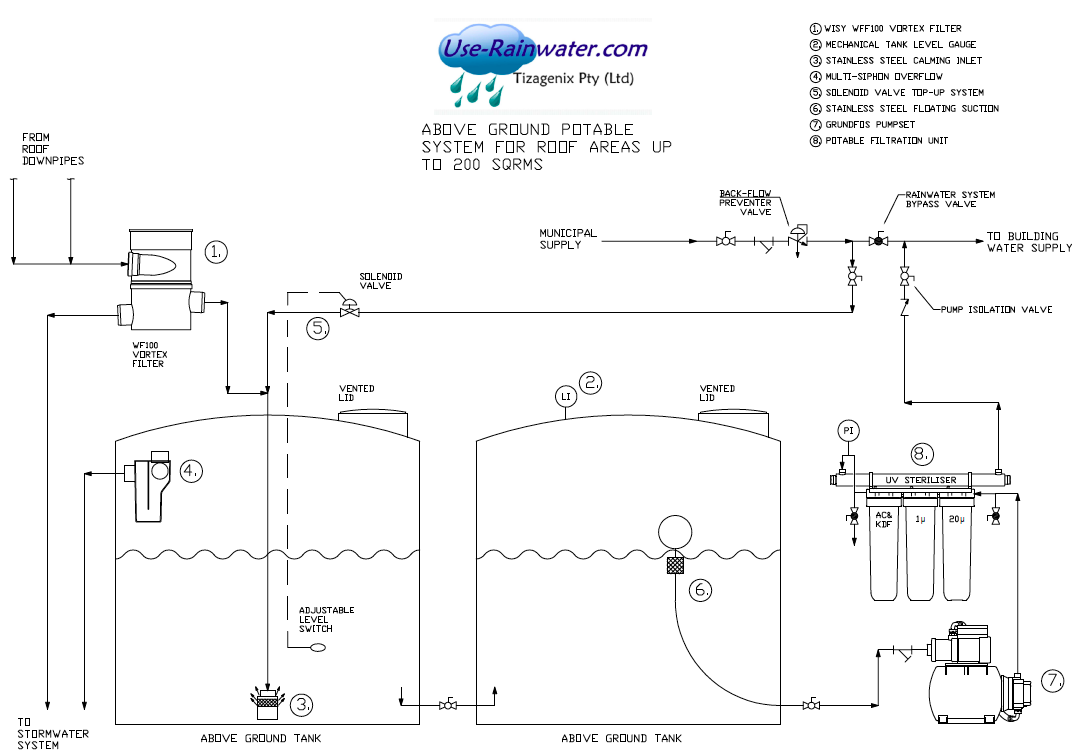

Rainwater harvesting system with flow-diagram with 10000l storage for a 200sqm roof
